How to Set-Up Wi-Fi on Move5000 – BNA Smart Payment

2 Options – Home Screen or ADMIN

Accessing from the Home Screen

1. At the home screen, tap the Coms icon.

Note: The Coms icon is located on the second screen page by default. Please swipe left to go to the second page.

2. Tap the Wi-Fi icon.

3. Under [1] Wi-Fi, press ON/OFF to enable/disable the Wi-Fi mode.

4. Select [2] Wi-Fi Easy Conn. (simple connection)

5. Tap the SSID name of the Wi-Fi network that you want to connect from the list.

6. Enter the Wi-Fi password, press [ENTER]

7. Press [Cancel] 3 times to return to home screen.

For Advanced Setup – Dynamic or Static IP

8. Select [3] – Advanced Setup

9. Select [1] – Networks.

10. Tap the SSID name of the Wi-Fi network that you want to connect from the list. If the name doesn’t appear in the list, scroll down the list to #14 and add name manually.

11. Enter the Wi-Fi password, press [ENTER]

12. Press [Cancel] once, to return to ADVANCED SETUP screen.

13. ADVANCED SETUP screen, Select [2] – IP Settings

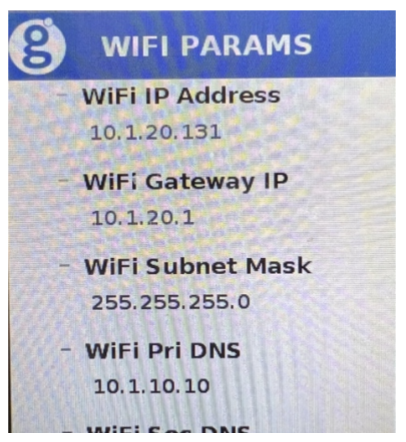

14. IP SETTINGS: Select:

1 – Dynamic IP, press [Cancel] 3 times to return to home screen

2 – Static IP (assigned IP – talk to your IT technician)

Enter the Static IP info provided by your IT person.

Terminal IP

Gateway IP

IPSubMask

PriDNSIP

SecDNSIP

Press [ENTER]

15. Press [Cancel] 3 times to return to home screen.


Accessing from the Communications Menu via the ADMIN Menu

1. At the home screen, press the administrator [.,#*] key or tap ADMIN

2. Select [3] – Setup Menu.

3. Key in the Administrator name and password, press [ENTER]

4. Press [2] – COMMUNICATIONS.

5. Press [3] Wi-Fi

6. Under [1] Wi-Fi, press ON/OFF to enable/disable the Wi-Fi mode.

7. Select [2] Wi-Fi Easy Conn. (simple connection)

8. Tap the SSID name of the Wi-Fi network that you want to connect from the list.

9. Enter the Wi-Fi password, press [ENTER]

10. Press [Cancel] 3 times to return to home screen.

For Advanced Setup. – Dynamic or Static IP

11. Select [3] – Advanced Setup

12. Select [1] – Networks.

13. Tap the SSID name of the Wi-Fi network that you want to connect from the list. If the name doesn’t appear in the list, scroll down the list to #14 and add name manually.

14. Enter the Wi-Fi password, press [ENTER]

15. Press [Cancel] once, to return to ADVANCED SETUP screen.

16. ADVANCED SETUP screen, Select [2] – IP Settings

17. IP SETTINGS: Select:

1 – Dynamic IP, press [Cancel] 3 times to return to home screen

2 – Static IP (assigned IP – talk to your IT technician)

Enter the Static IP info provided by your IT person.
