How to Verify if the Bluetooth Communication Base is Synchronized to the MOVE 5000 Terminal

Accessing from the Home Screen

1. Tap the COMS icon.

Note: The COMS icon is located on the second page by default, please swipe left to go to the second page.

2. Tap the Bluetooth icon.

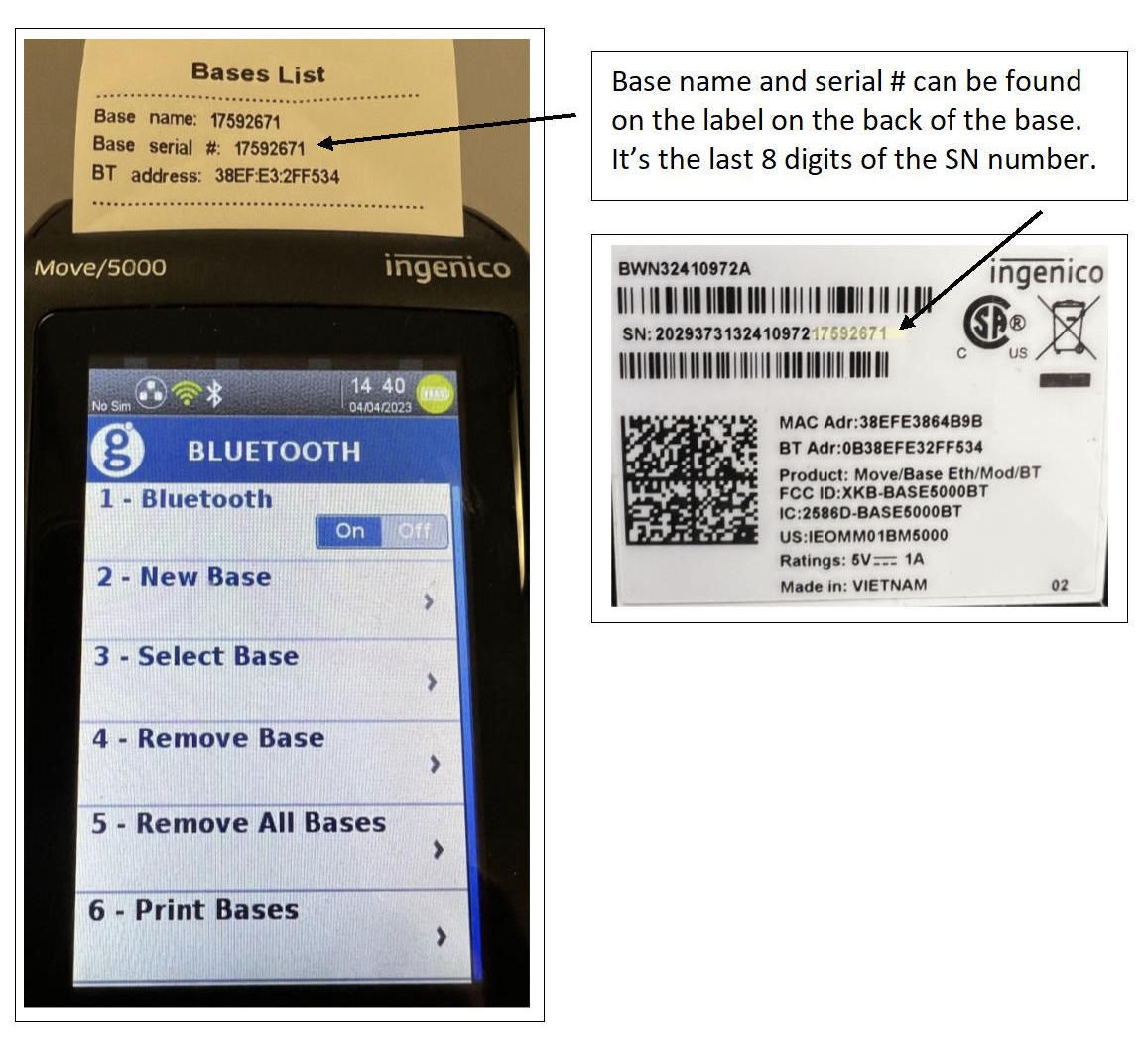

3. Select [6] – Print Bases

4. Screen message displayed: if none “NO KNOWN BASES”

                                                     if any “BASE LIST” – prints a receipt with information.

Accessing from the Communications Menu via Admin Menu

1. At the home screen, press the Administrator [.,#*] key or tap ADMIN on Home Screen for the administrator menu.

2. Select [3] – Setup Menu.

3. Key in the Administrator name and password, press [ENTER]

4. Press [2] – Communications

5. Press [5] – Bluetooth

6. Select [6] – Print Bases

7. Screen message displayed: if none “NO KNOWN BASES”

                                                     if any “BASE LIST” – prints a receipt with the base serial #
