Replacing the Paper Roll

When coloured stripes appear on a receipt, this is the indication to change the paper roll.

Note: Only use paper approved by the manufacturer (roll diameter max 40mm/1.57”, roll width 58mm/2.25”, roll length 17m/55’). Using unapproved paper can damage the terminal’s printer.

To change the paper roll, follow the steps below:

1. Pull up the flap at the top of the terminal.

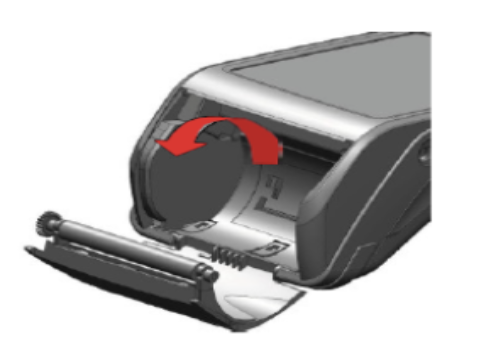

2. Pull the flap backwards to open the paper compartment.

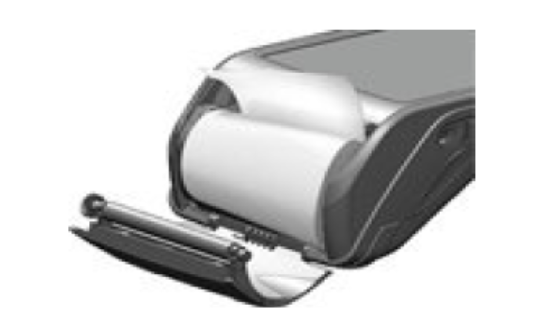

3. Place the paper roll into the paper compartment, Make sure the end of the paper inserted as shown below. Pull a little bit of paper out towards the top the terminal. Close the paper compartment by pulling the flap up towards the terminal.

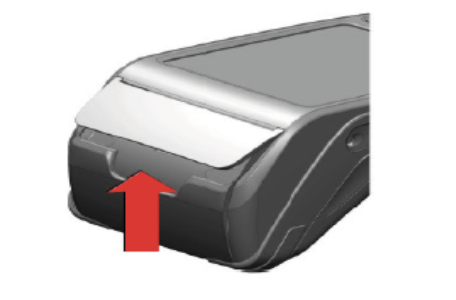

4. Close the paper compartment so that a little bit of the paper is coming out.

Note: If you insert a new R40 paper roll, tear off the first length (one complete turn to avoid printing on adhesive tape footprint).
